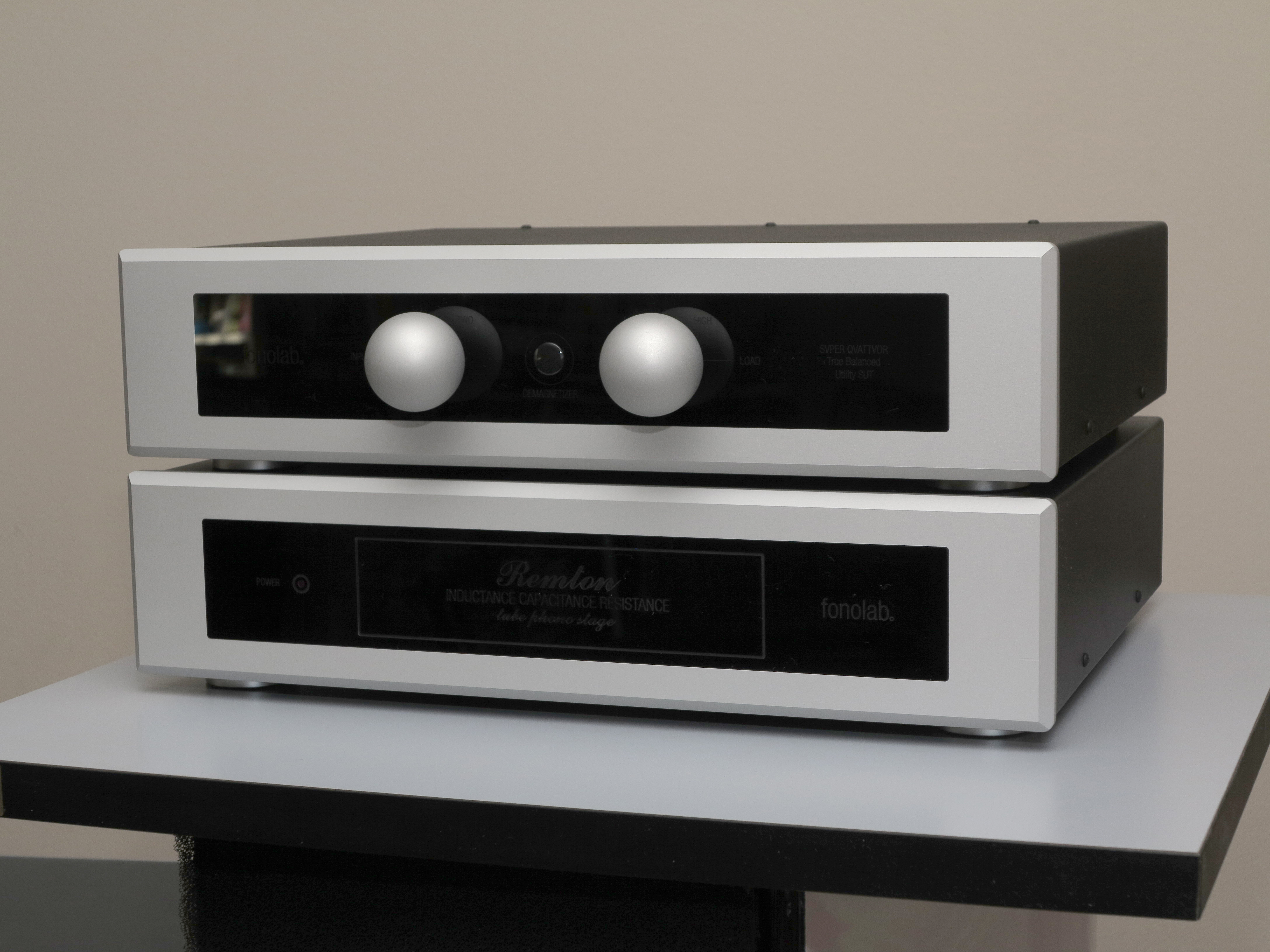

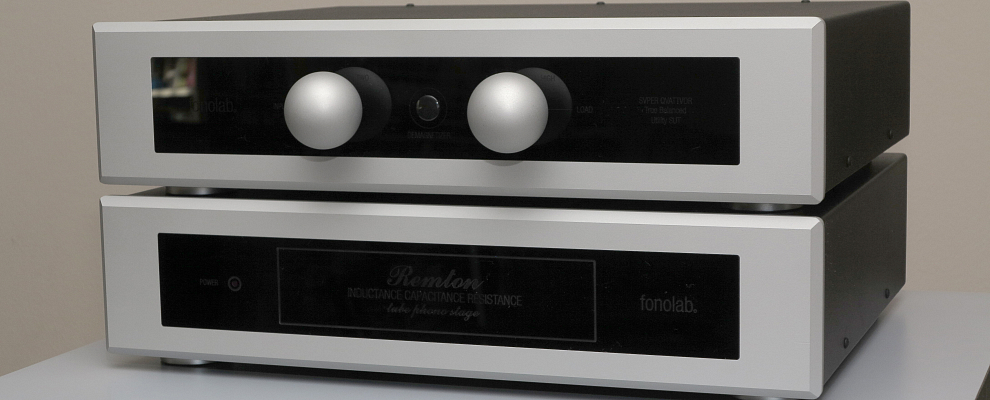

fonolab Remton Audio LCR MM Tube Phono Stage
with separate Balanced MC Step-Up Transformer
In collaboration with Remton Audio, our long-time analog audio partner, we offer a combination of an LCR MM tube phono stage and an external balanced MC step-up transformer.
With our participation, Remton Audio has created a series of tube phono stages based on the famous Remton Audio LCR model with the ability to expand the system to a fully balanced one.
Improvements have been made to shielding and vibration suppression, as well as a redesigned appearance. to match the design of our step-up transformers and our other products.
The result is a fully balanced phono stage with all the advantages of such solution, namely common-mode rejection, where noise signals are squashed, lower noise and distortion.
A balanced cartridge, a balanced transformer combined with a balanced phono stage, so we've taken the magic of analog signaling one step further.
An ideal solution for the progressive construction of a high-quality audio system.
Specifications:
Fully balanced Passive LCR RIAA equalization
Zero negative feedback
Soft-start DC high voltage supply
Frequency response RIAA: 20 Hz to 20 kHz ±0.3 dB
Input impedance: from 36 Ohm to 100 kOhm
Input capacitance: 0, 47 pF, 100 pF, 147 pF, 220 pF, 267 pF, 367 pF
MC Input impedance: 0-5 / 40 Ohms (Ratio: 1:33 / 1:10)
Output impedance: 200 Ohms
Gain: 48dB
Dimensions: 386 x 295 x 85 mm
Weight: 12 kg
fonolab has its own engineering department, so we can offer a wide range of bespoke front panel finishes.
If you have a prefered color scheme, we can produce your unique SVPER QVATTVOR Step-Up transformer design complimentary.
Contact your fonolab Dealer or Contact Us and let your imagination run wild.

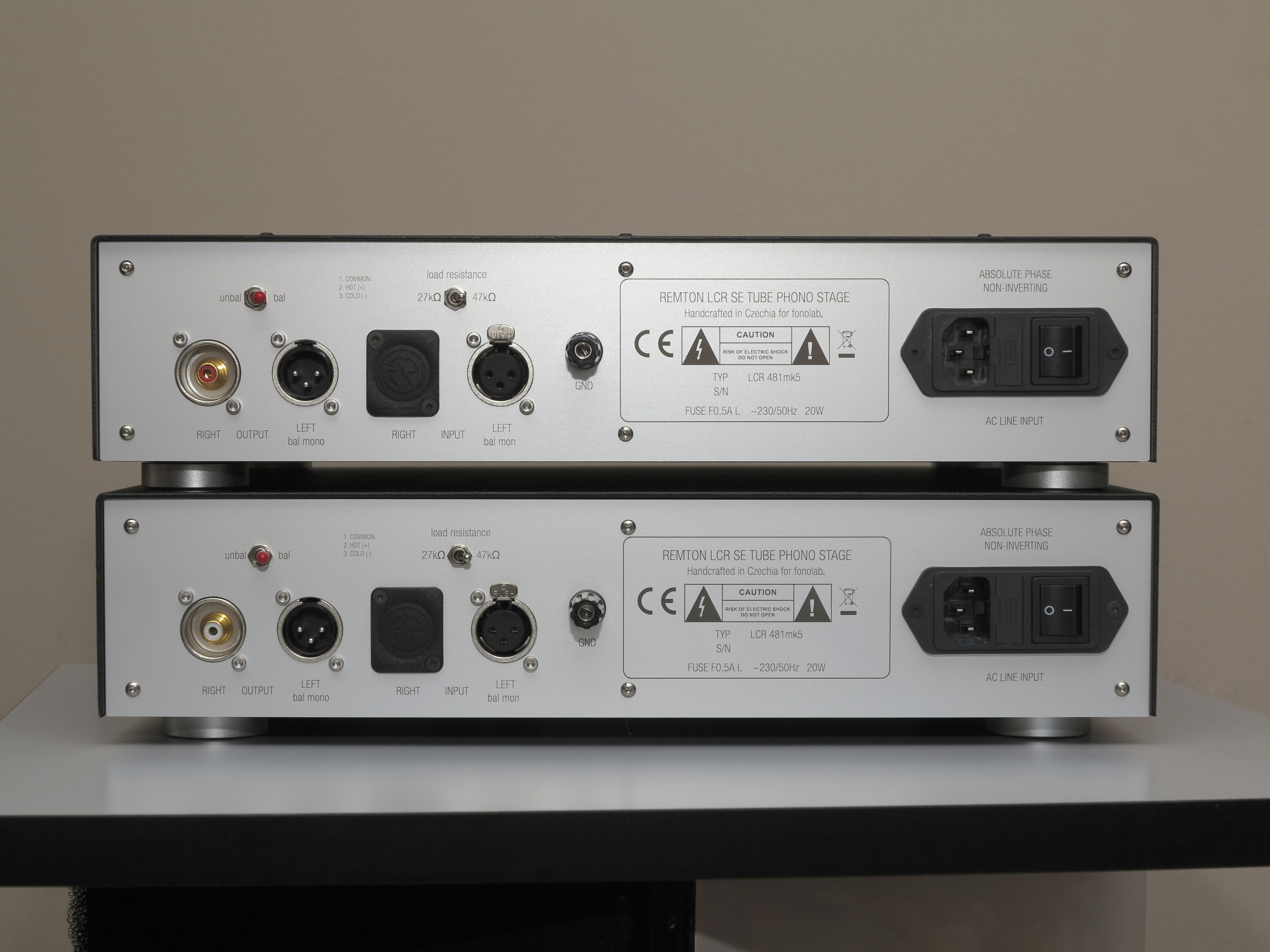

A unique feature of this model is the ability to upgrade to a balanced mode by adding a second unbalanced device.
This model is also available immediately in a balanced configuration.
