QVATTVOR Classic

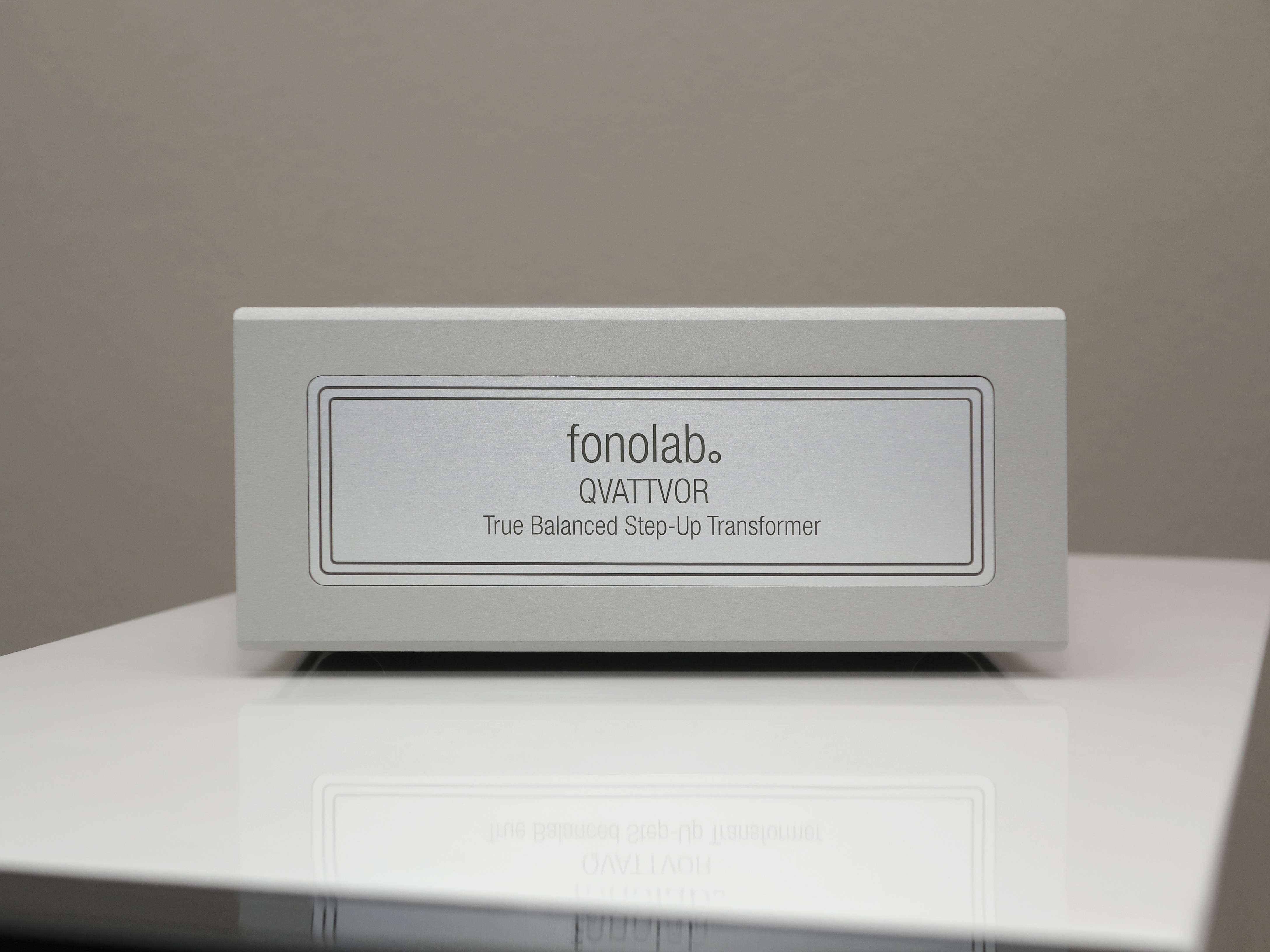

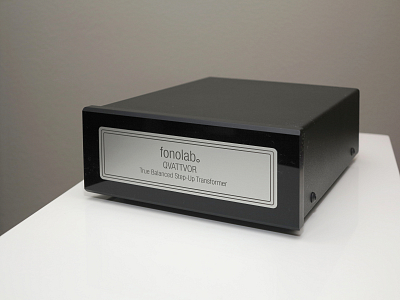

QVATTVOR Classic True Balanced MC Step-Up Transformer



The QVATTVOR Classic brings reference-level performance to low-output MC cartridges with its fully balanced design.

Each channel uses matched pairs of Tamura Super Permalloy transformers, ensuring maximum precision and musicality.



Built on the new universal FUCHS chassis, the unit offers complete connectivity with both balanced XLR

and standard RCA inputs/outputs, ensuring seamless integration with any high-quality phono preamplifier.



Featuring fully balanced circuitry, the QVATTVOR Classic also features an unbalanced output for easy connection to any phono stage.

Key Features

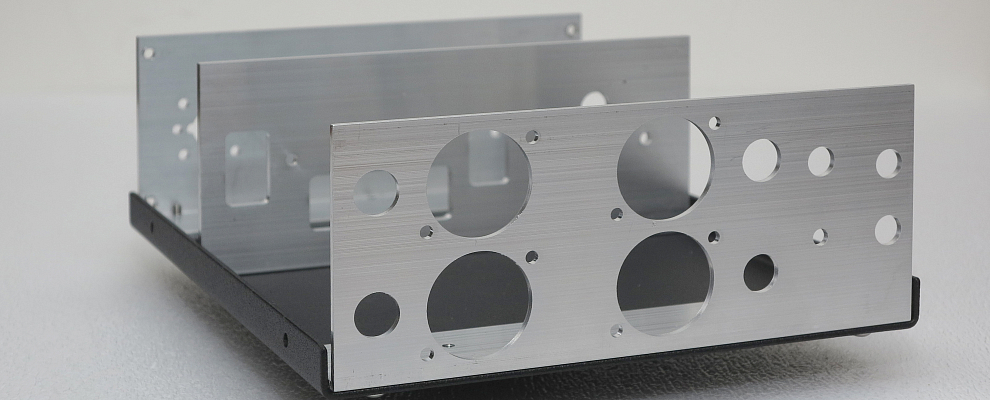

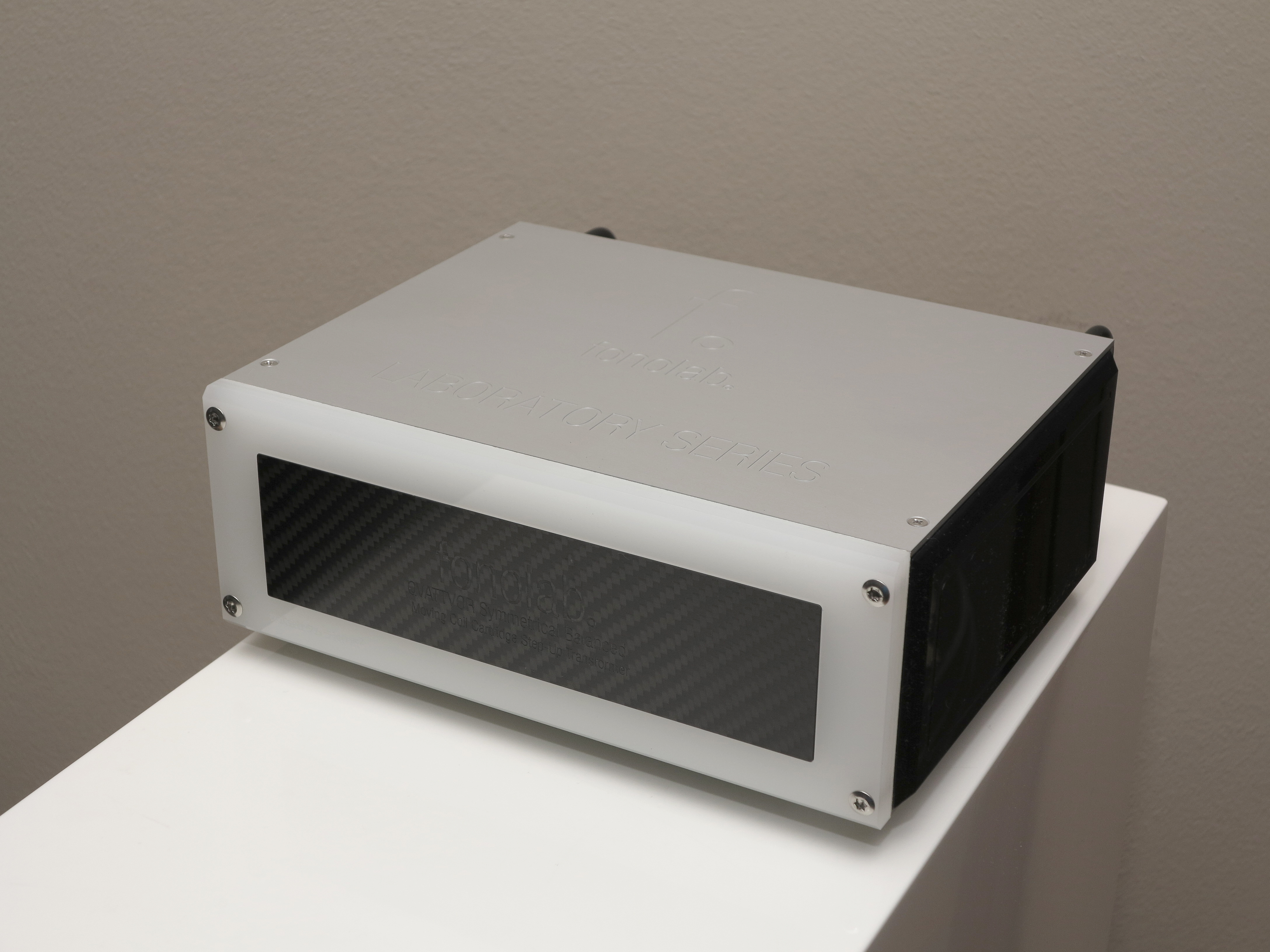

New chassis design (original FUCHS Chassis): smaller and more compact, yet offering more connection options.



Improved shielding and damping despite the reduced size.



Flexible grounding options to minimize hum and noise.

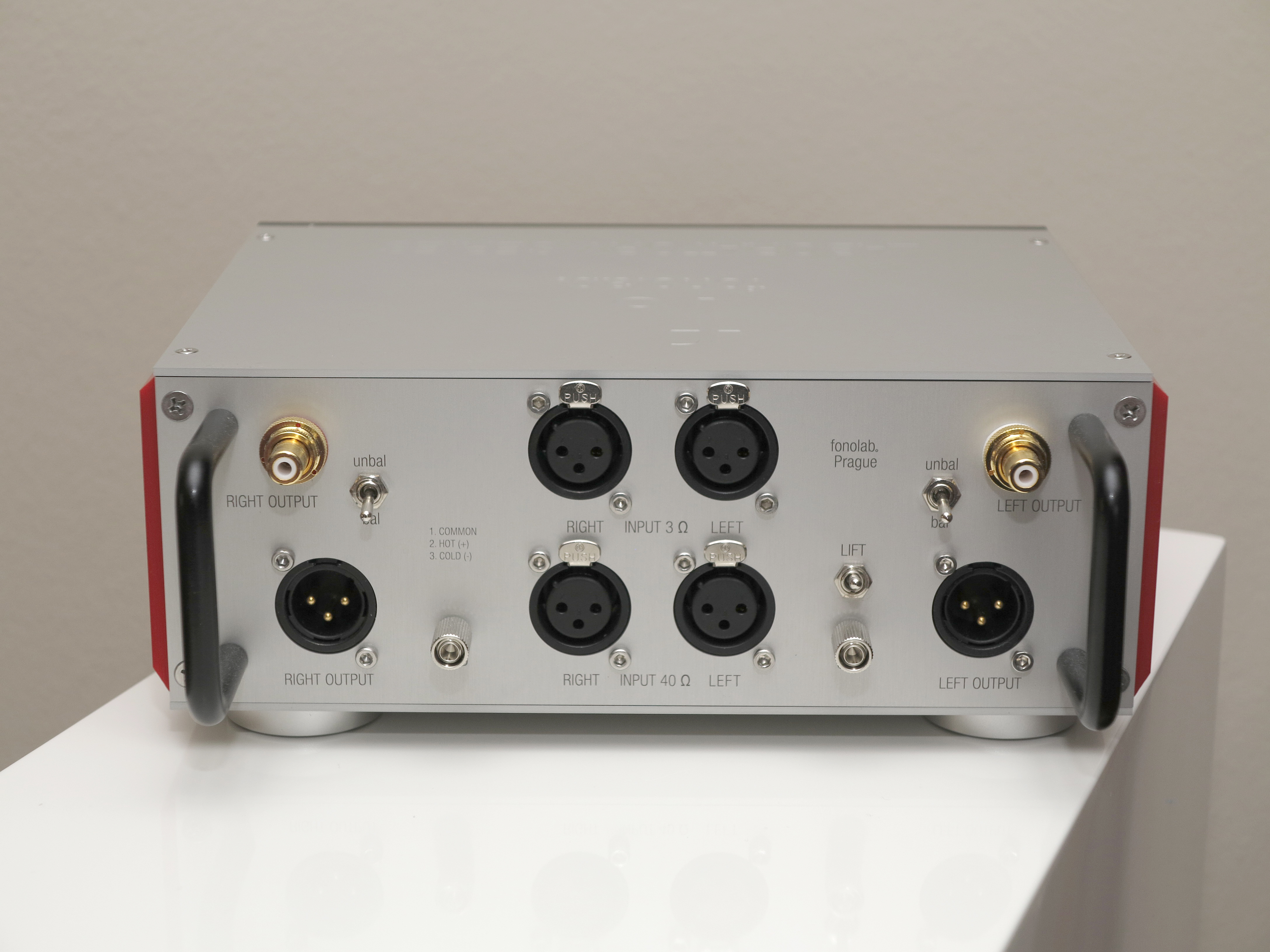

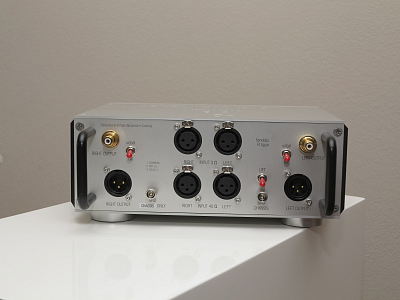

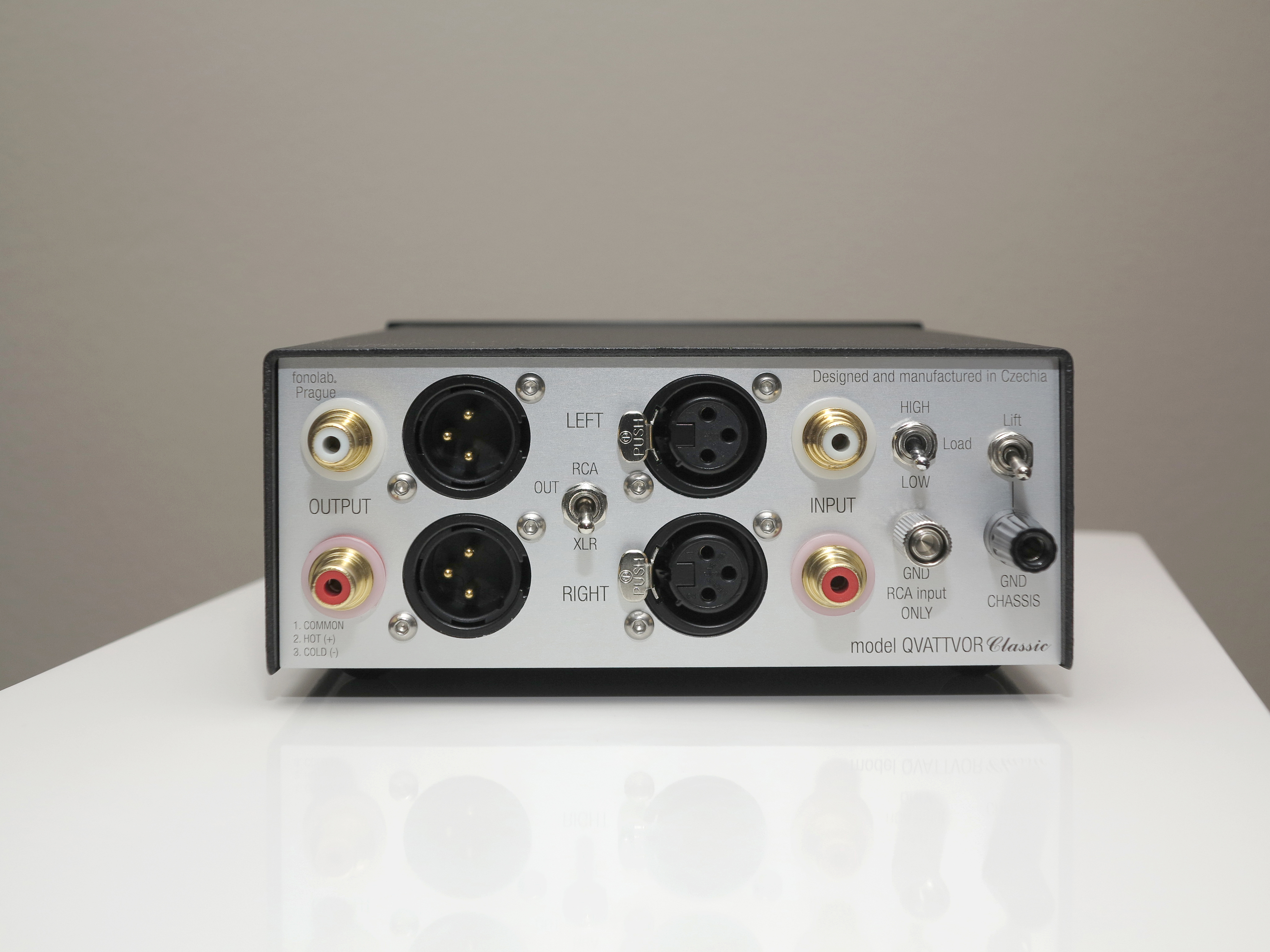

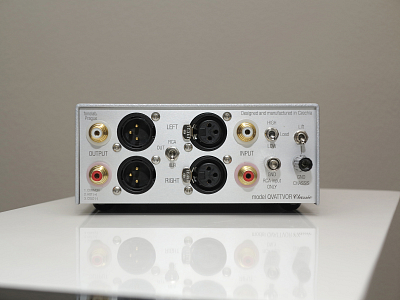

Expanded switching capabilities: inputs and outputs both RCA and XLR, additional ground post.

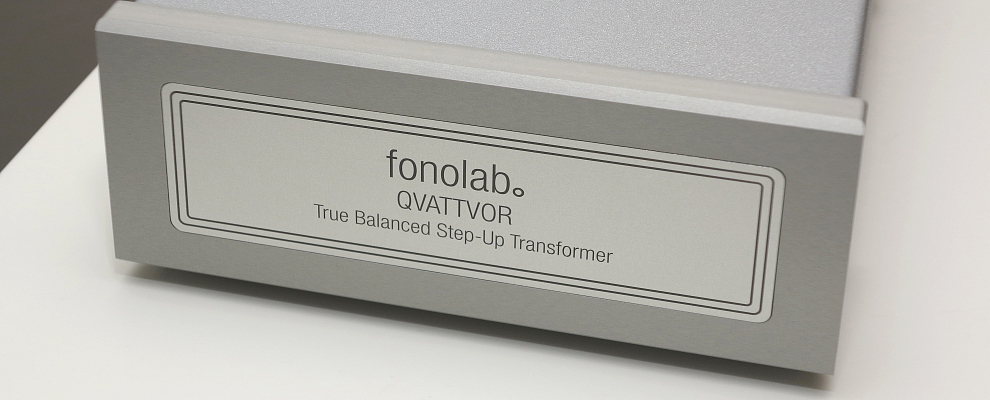

Maintains the classic fonolab compact aesthetic, now refined with subtle details that underscore its timeless design.

Specifications:



Input impedance: 0-5 / 40 Ohms

Output impedance: 4k Ohms

Frequency response: 10Hz to 100kHz (+-1.0dB)

Channel separation: more than 80dB (20Hz–50kHz)

Ratio: 1:36 / 1:10

Phase characteristics: Within 10° (20Hz–50kHz)

Dimensions WxDxH: 155 x 215 x 70 mm

Weight: 2,1 kg



The RCA input operates in a pseudo-balanced mode, so the signal is always processed in true balanced form within the transformer.



Available in a Silver Aluminum, Black Glossy finish front panel.
