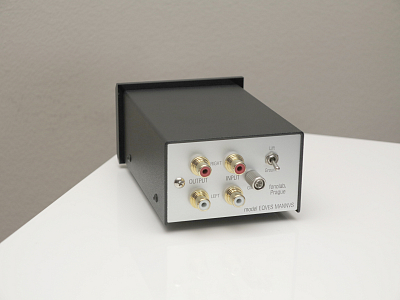

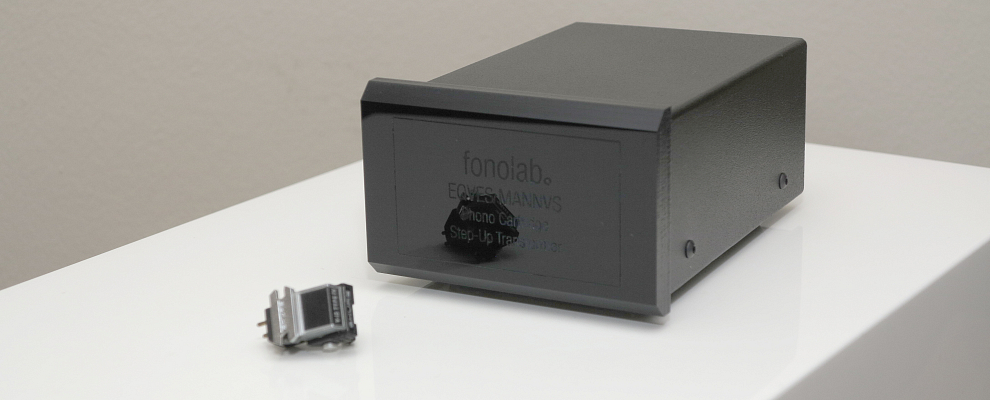

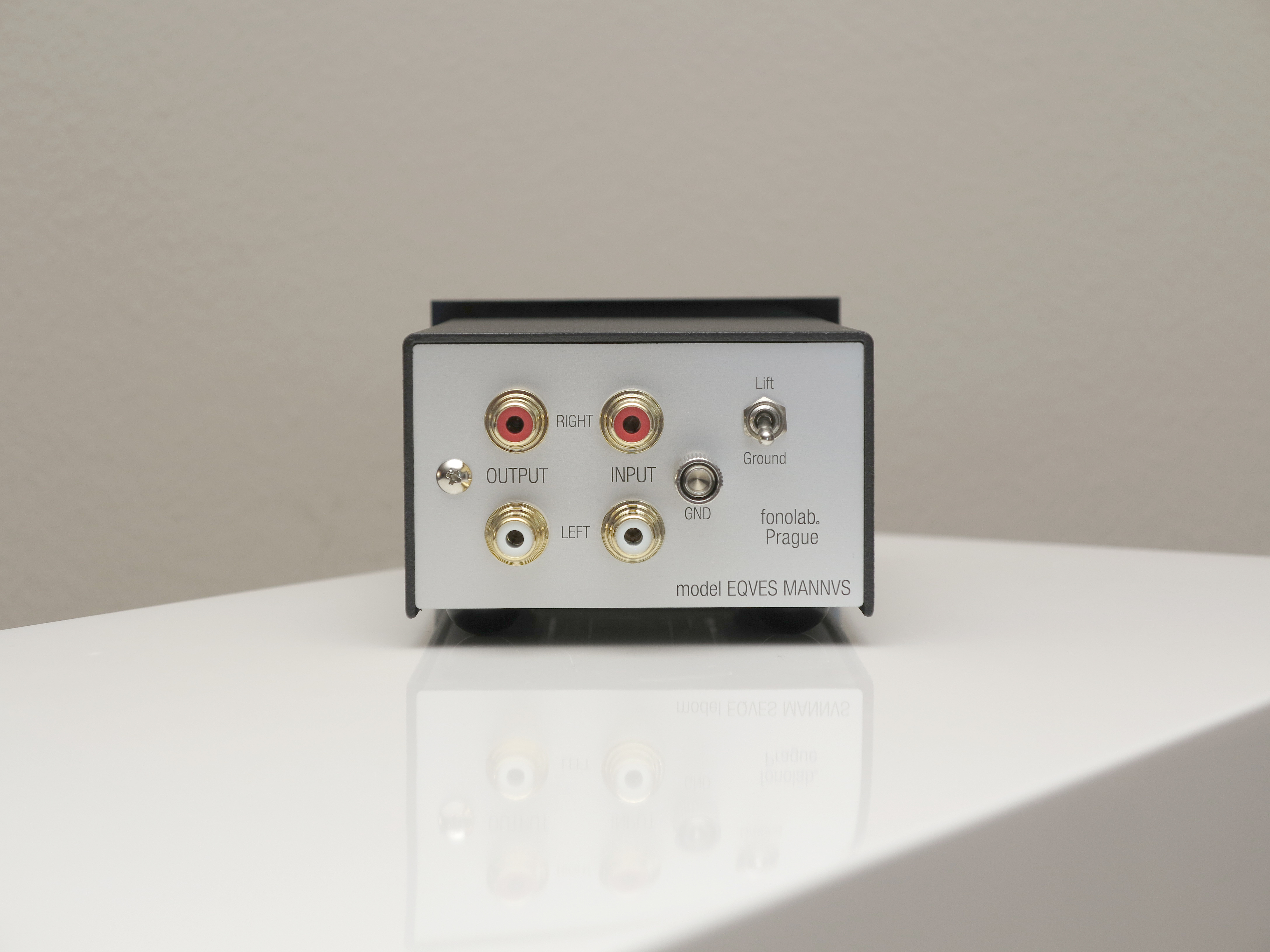

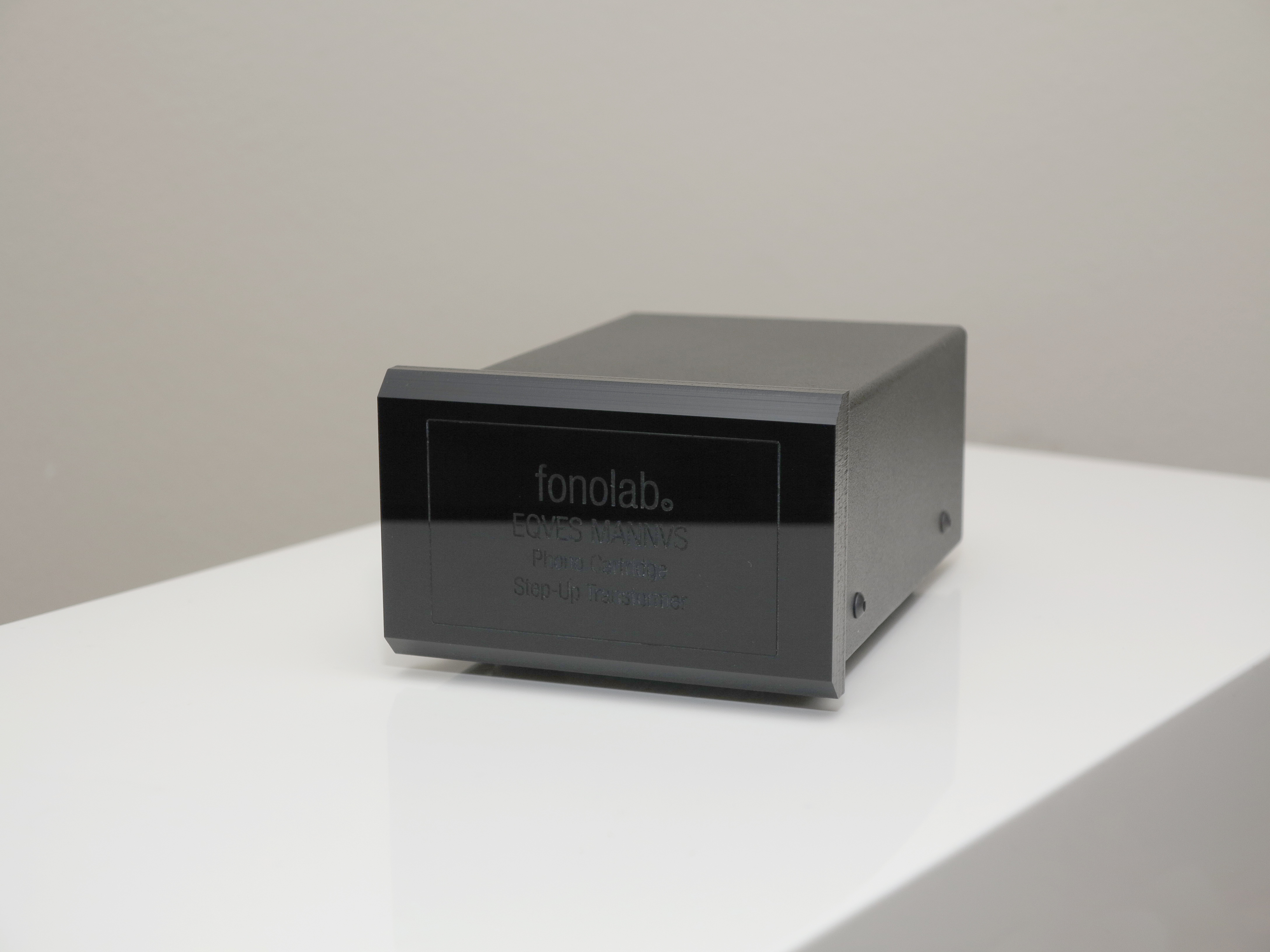

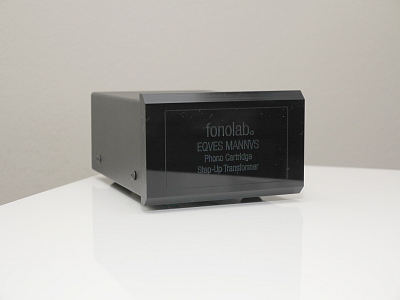

EQVES MANNVS
Specialized broadband Step-Up transformer with 1:2 ratio specially designed for MM/MI phono cartridges.
EQVES MANNVS gently raises the voltage of your cartridge to optimal values.
Many MM cartridges have relatively low output voltages (1.5-3.0mV), which when connected to a fixed-gain / low gain phono stage makes it impossible to get the most out of your favorite MM cartridge.
With a MANNVS Step-Up transformer, you not only get quality high voltage from the MM cartridge at the input of the phono stage, but also reduce the overall noise level at the output of the phono stage.
You will see the thinnest lines that your classic or modern MM cartridge can draw.
Specifications:
DC Resistance (primary): 1000 Ohms
DC Resistance (secondary): 2000 Ohms approx
Frequency response: 5Hz to 100kHz (+-0.5dB)
Ratio: 1:2
Voltage gain: 6dB
Weight: 0.8kg
