Remton Audio PRO Balanced LCR Tube Phono Stage
Special model for use when digitizing analogue recordings.

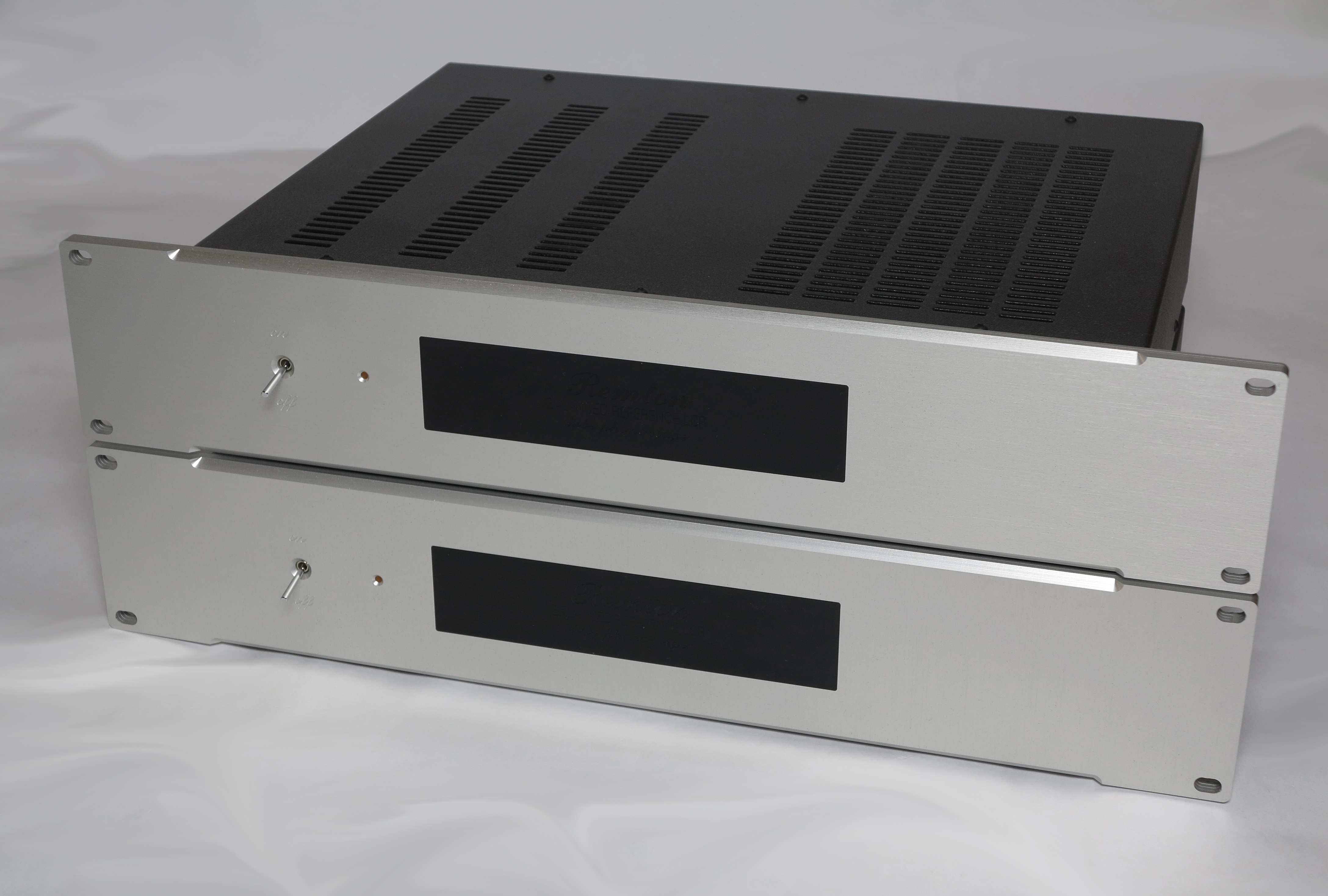

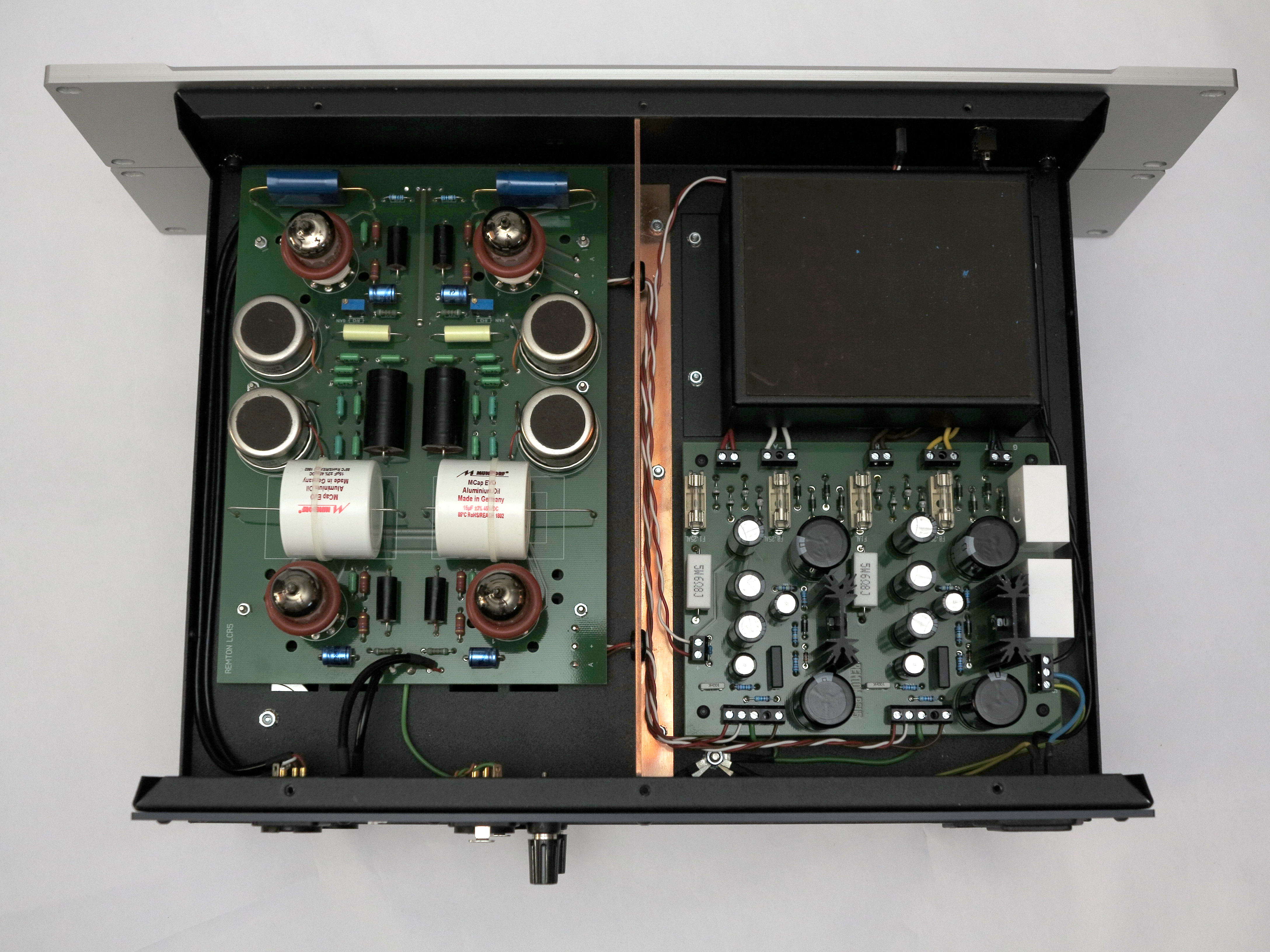

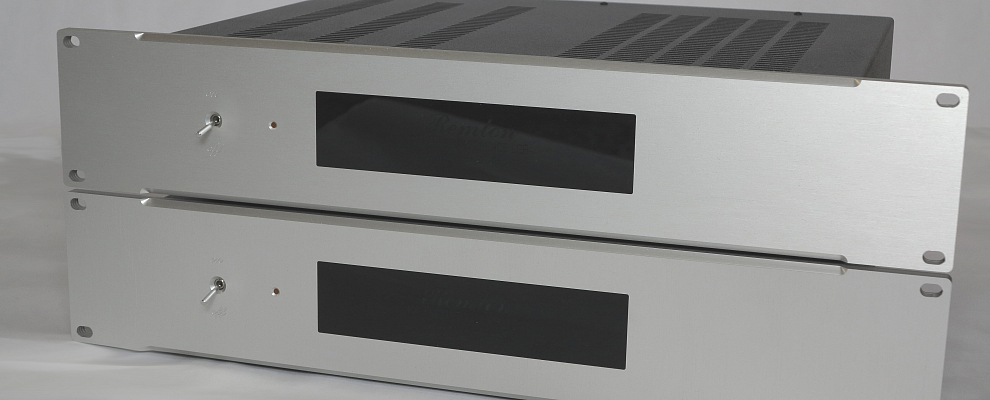

Improved shielding of the power supply and signal circuitry. The two-channel balanced system is assembled according to the dual mono scheme with each channel placed in a 19 Inch Standard Rackmount 2U.
According to our specifications, changes were also made regarding the selection of electronic components of the original circuit.
The result is a fully balanced phono stage with all the advantages of such solution, namely common-mode rejection, where noise signals are squashed, lower noise and distortion.
A balanced cartridge, a balanced transformer combined with a balanced phono stage, so we've taken the magic of analog signaling one step further.
Features and specifications:
Fully balanced Passive LCR RIAA equalization
Zero negative feedback
Independent power supply per channel with toroidal power transformers
Soft-start DC high voltage supply
Frequency response RIAA: 20 Hz to 20 kHz ±0.3 dB
Input impedance: from 36 Ohm to 100 kOhm
Input capacitance: 0, 47 pF, 100 pF, 147 pF, 220 pF, 267 pF, 367 pF
Output impedance: 200 Ohms
Gain: 48dB
Dimensions: 386 x 295 x 85 mm
Weight: 12 kg
Please feel free to Contact Us if interested in this PRO Version
or you would like a special upgrade to be created for your existing Remton Audio LCR preamp
